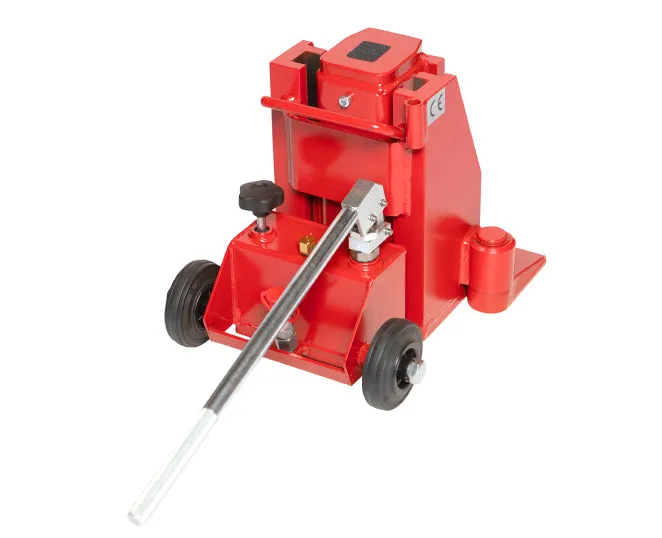

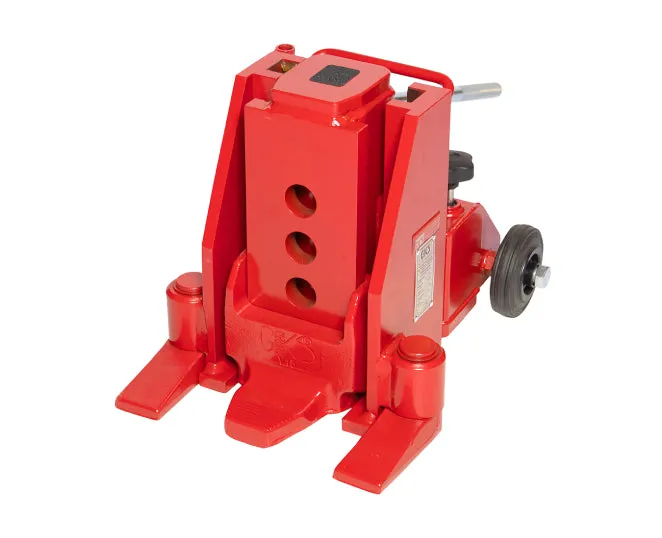

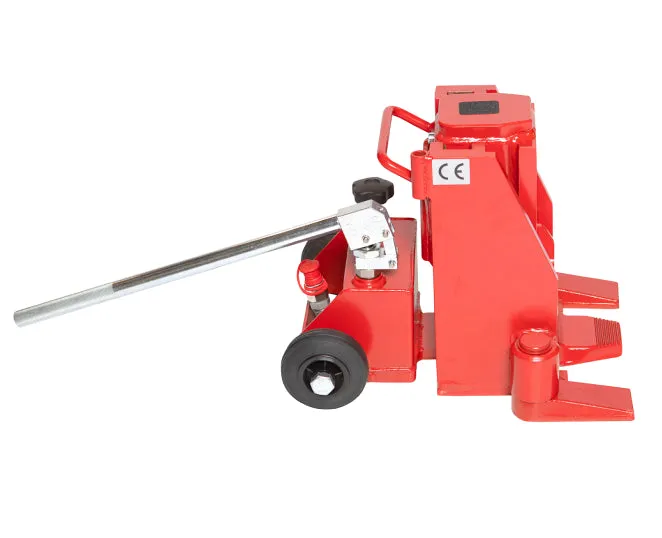

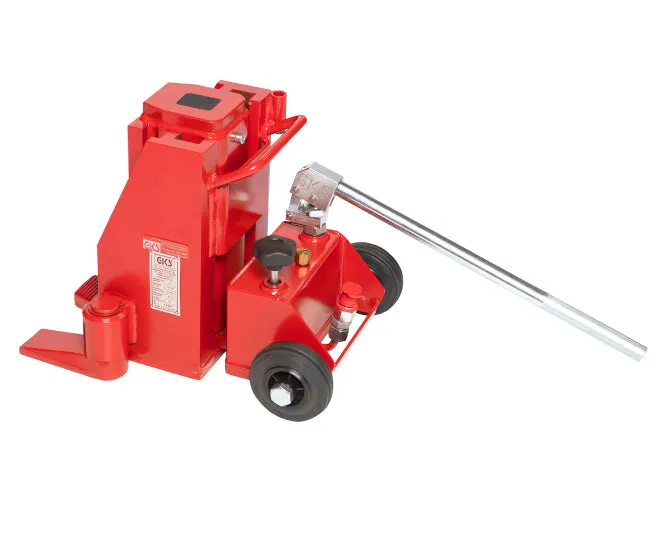

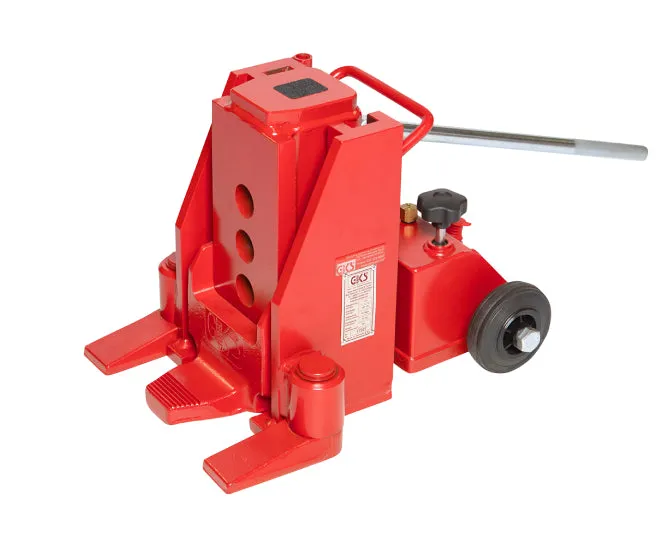

V15 Hydraulic Toe Jack

The GKS V15 Hydraulic Toe Jack is a rugged and reliable lifting solution designed to tackle heavy-duty tasks under 33,000 lbs. (15 tons) with ease. Crafted with forged steel, this hydraulic jack offers exceptional strength and versatility for various industrial applications. It has four available toe jack starting positions, ability to operate manually or with a hydraulic pump, and offers the same loading capacity on the toe and the head.

Features:

• Forged, steel safety toe, which is stronger than the industry standard of cast steel
• Ability to operate manually or with a hydraulic pump
• Same loading capacity on the toe and the head
• 4 starting positions

Specifications:

• Weight: 117 lbs
• Load Capacity: 33,000 lbs (15 t) 150 kN
• Working Pressure: 7,542 psi (520 bar)
• Loading Height: Toe min 1" (25mm)
• Loading Height: Toe Max 6.9" (175 mm)
• Lifting Height: 6.3" (160 mm)
• Top Plate (L x W): 3.6 x 3.3" (95 x 88 mm)
• Lift Toe Positions: 4
• Loading Height: Top Plate 12.5" (318 mm)
• Dimensions (L x W x H): 13.9 x 12.0 x 12.5" (353 x 304 x 318 mm)
• Weight with oil: 117 lbs. / 53 kg
