Model: TL

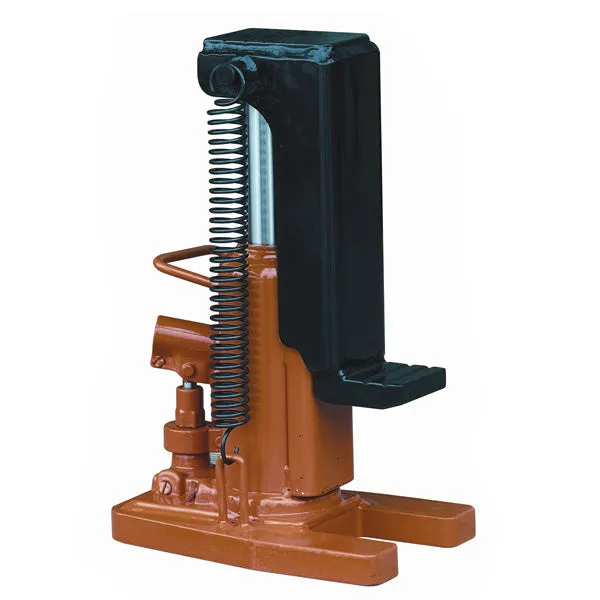

Heavy-duty, industrial quality, dual purpose jack. Designed for lifting loads with very low minimum clearances (foot) or high clearances (head). Ideal for house moving, machinery installation and application at shipyard, bridge building or plant construction sites. Great companion tool for machinery type rollers.
Easy operation in any direction on the 5,000kgs and 10,000kgs models. Safety valve included for overload protection. Features spring assisted return and over-travel protection on the 5,000kgs and 10,000kgs models. Ram is made of heat treated special steel to resist rust and assure strength. Electrically welded base and cylinders to assure strength. Pump handle included.
Not affected by temperature extremes.
TL2 | TL5 | TL10 | |
Min Toe Height | 16mm | 22mm | 28mm |
Stroke | 112mm | 120mm | 145mm |
Capacity | 2,000kgs | 5,000kgs | 10,000kgs |
Supplied with an E.C Declaration of Conformity.
